FORZA MOTORSPORT TUNING CALCULATOR

[ ABOUT ]

• I have been working on this for quite some time and at the same time working with various community members including feuerdog.

  And now I release it to you guys. Have fun and constructive feedback will be appreciated. Thanks.

[ MISSION STATEMENT ]

• To provide a solid foundation to tune from. Less time tuning in the dark, more time having fun.

[ FEATURES ]

• NEW! Supports multiple languages including English, Français and Deutsch.
• Supports both English and Metric units.
• Print area enabled.
• REVISED FM4 suspension dynamics.
• Suspension input modifiers for tweaking the strength and front bias for individual suspension parts.
• Integrated transmission calculator.
• REVISED Simplified Dynamometer.
• Calculated final drive ratio.
• Option of selecting between 4, 5 or 6 gear transmission.
• The ability to tune the last gear to match drag limited top speed to gear limited top speed (vehicle’s redline on overdrive).
• Automatic gear spreader.
• REVISED Calculated optimal launch rpm.
• Automatically calculates optimal shift points.
• Option for displaying optimal shift points in mph/kph or RPMs.
• Supports power handicaps.
• REVISED Vehicle Database with vehicle specifications, prices, etc.
• Full rim list with weight loss ratings.
• Tire dynamics sheet.
• Modified tire pressure values based on ideal gas law equations.
• Aerodynamics sheet with down force and drag estimates.
• REVISED Aero strength and front bias modifiers.
• Automatic calculated caster angle based on front tire contact patch and loaded radius.
• Inch increments to camber and toe angle conversion.
• REVISED Ride height adjustment tool.
• REVISED Class Builder sheet to keep track of your class build.
• REVISED Priority Upgrade Table.
• Track list.

[ NEWS ]

• 05/04/2012 - Discontinued until further notice.
• 04/16/2012 - It is finally here. Please read the new instructions and enjoy.
• 04/15/2012 - Reboot sequence initiated...
• 04/07/2012 - For every new version that gets uploaded, the older one gets replaced. However the file has been corrupted, as I later tested, due to an excel version 2010 to 97 conversion. I'm working on a fix but my time is very limited. It will be out when it is out.
• 04/05/2012 - Please stand by.

[ SCREENSHOTS ]

[ REQUIREMENTS ]

• Be somewhat intelligent or born with common sense.
• Excel 97-2003
• Excel 2007
• Excel 2010
• Analysis Toolpak enabled
  Excel 97-2003: Tools>add-ins>enable analysis toolpak
  Excel 2007: office button>excel options>add-ins>manage: excel add-ins GO> check analysis toolpak>press OK.
  Excel 2010: File>options>add-ins>manage: excel add-ins GO> check analysis toolpak>press OK.

[Mod Edit - link removed - Worm]

[ INSTRUCTIONS ]

1. Select your preferred language (cell B4)

2. Select your preferred units (cell E4)

3. Save (CTRL+S)
4. Select Car (cell H1)

5. In Game: make sure you are in it and go to:
6. Play Career>Cars>My Cars

7. Press [ Y ] to toggle.

8. Input that data into FMTC Main(i.e.; power, torque, weight, front)
9. Press [ X ] (car list)
10. Hold the [ RB ] until you reach the data needed (ex: power rpm, torque rpm, redline rpm, front and rear tire sizes)


     .....

11. Enter required data into FMTC Main
12. Go to Play Career>Upgrade>Upgrade Shop>Tires and Rims>Rim Style to get Lateral G's. It’s shown on the confirmation screen if you buy and install any upgrade. If already mounted, select Stock rims, press [ A ] once, then check value in the "before" sector to get the current value, then abort mounting with [ B ].

13. Benchmark test for top speed and enter it in cell E33, INPUT>Transmission>Top Speed. Readjust gears to top speed desired.

14. Follow the comments inside the modifier cells for guidance to that tweak you are looking for.
15. Anything else, ask here or figure it out amongst yourselves.
16. Watch the new tutorial video below.

[ VIDEOS]


FMTC - Video Tutorial By insomniac84

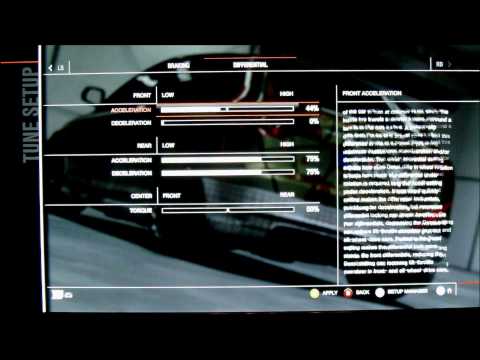

Forza Motorsport 4 | Tutorial | Advanced Tuning Guide By TaintProductions

[ F.A.Q. ]

• Can I message you over Xbox Live?


  No and please no more blind friend requests, just post here. Someone will help you I’m sure.

• Will you answer a question that has already been answered?


  No. Any questions that need a repeated answer will be ignored to prevent disputes and disrespect amongst community members.

• Can you tune a car for me?


  No. What would be the point of all this?

• Will this get me to the top of the leaderboards?


  No. This spreadsheet is a time saving tool which does most of the math for you, gives you a base set up and has several modifying options. It is not a miracle. However it is up to you to get yourself up to the leaderboards.

  Most of the hot lappers of the community have this misconception that using a tuning calculator is weak. Forza is a simulator and this calculator will always feature real physics not feel. The rest is up to you, the user.

• I can't believe this isn't error free. I only get alignment values but everything else is blank. Come on i really want to use this. What gives?


  What gives is that the calculator under conditional formatting goes blank when it encounters #NAME?.

  #NAME? appears when previous excel versions can't read excel 2007 new formula statements. In this case your spreadsheet gets an error when it encounters the MROUND function.

  To fix this you must have the analysis toolpak add-in enabled.

  Go to this link for more details:
  http://office.microsoft.com/en-us/excel/HP052091851033.aspx
